SatLink WS6912 DVB-S2 Satellite Meter With Spectrum Analyzer

Digital S2 Satellite Finder Meter DVB-S2 With Spectrum Analyzer WS-6912

NEW WS-6912 S2 Professional Meter Version Includes A Digital Satellite Spectrum Analyzer Plus Wach All FTA Satellite Channels Including HD On Colour LCD Screen

First Time Available On Any Low Priced Satellite Meter That You Are Able To:
* View the actual HD channels on the screen of the meter.
* Quickly and accurately align the satellite dish and instantly check the stability of the channel right on the screen of the meter.
* Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.
* There is never a need to send your meter in for a upgrade.
* The meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.

SPECIAL FEATURES INCLUDE:

* DVB-S2 DIGITAL SATELLITE METER
* SATELLITE METER & REAL TIME SPECTRUM ANALYZER
* View And Adjust Satellites With The Built In Spectrum Analyzer
* View All The Actual FTA Satellite Channels Including S2 On The Meters Colour Screen.
* Auto Re-Calibration Due To The Unique Calibration System Built in to the Meter.
* Automaticlly Calculates Dish Angles And Settings Based On Your Longditude And Latitude.
* Calculates Your Dish Angles And Alignment Settings so you can quickly and accurately align the satellite dish and you can instantly check the stability of the channel right on the screen of the meter.
* Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
* All Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.
* View All FTA Satellite Channels Including S2 On Screen With Sound.

Specs

*Receiving front-end modulation for QPSK / 8 PSK signal
*Test spectrum analyzer
*3.5 Inch High definition TFT LCD Screen can show live Channels
*NEC Solution
*Auto Calculate Angle of AZ ,EL
*Upgrade S/W by PC
*Shows both S/N and C/N
*Shows strength and quality readings
*Sound and Light Alarm When Lock Signal
*Shows channel picture
*Show numerical reading and bar reading
*Digital Meter for Signal Strength (in numerical & Value and picture)
*Easy Satellite Manager(EDIT, delete and SCAN)
*Edit TP, Frequency, LNB switch,Symbol Rate etc.

OTHER FEATURES INCLUDE:

* SYMBOL RATE 8PSK AND QPSK
* 3.5 Inch High definition TFT LCD Screen which Can show live Channels
* NEC Solution
* Shows both S/N and C/N
* Shows strength and quality readings
* Sound and Light Alarm When Lock Signal
* Shows channel picture
* Show numerical reading and bar reading
* Digital Meter for Signal Strength(in numerical & #118alue and picture)
* Easy Satellite Manager ( EDIT, delete and SCAN)
* Edit TP, Frequency, LNB switch, Symbol Rate etc.
* Completely programmable by the user
* Input Frequency 950-2150MHz
* Input Level -65-25dBm
* Input Impedance 75(ohm)
* Auto Calculate Angle of AZ ,EL
* Upgrade S/W by PC
* Easy to carry, size only 9.5cm X 15.5cm X 4.5cm
* DisEqC Control
* 22KHz Control
* Fast Charge LI-ION Battery(1950mAh), Can Last 4 Hours
* Indicator Lights for 13/18 volts
* Indicator lights for 22 KHz
* USB port for software upgrades
* USB software upgrade cable included
* Neck strap includes
* Carrying case included
* 12VDC power charger included

Items Included:

* Sat-Link HD Meter WS6912 With Battery
* USB Software Upgrade Cable
* Neck Strap
* Carrying case
* 12VDC Power Charger
* Two Pin 12VAC Mains Power Charger

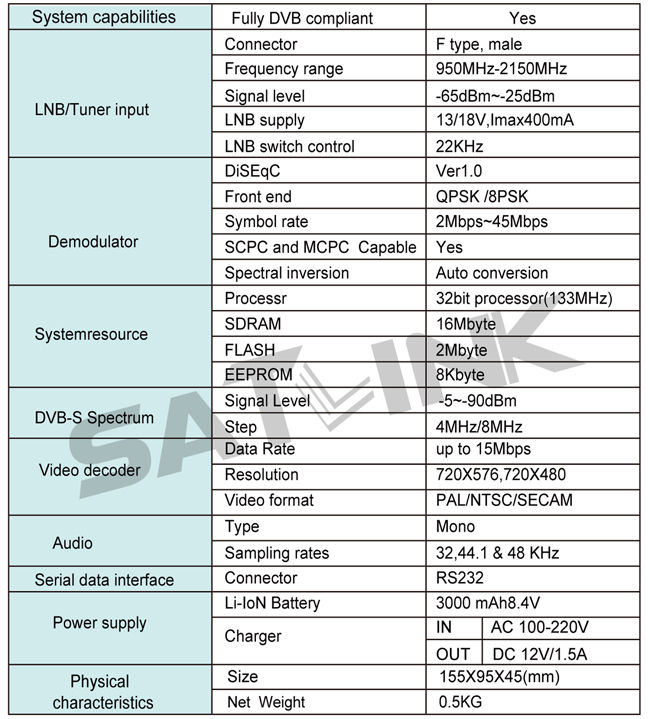

System capabilities

Fully DVB compliant Yes
LNB/Tuner input Connector F type,male
Frequency range 950MHz-2150MHz
Signal lever -65dBm~-25dBm
LNB supply 13/18V,max400mA
LNB switch control 22KHz
DiSEqC Ver 1.0 /1.1/1.2

Demodulator Front end QPSK and 8PSK
Symbol rate 2Mbps~45Mbps
SCPC and MCPC Capable Yes
Spectral inversion Auto conversion

System resource Processor 32bit processor (200MHz)
SDRAM 64Mbyte
FLASH 16Mbyte
EEPROM 8Kbyte

Video decoder MPEG 2 Main Proflie@Main Level
Data Rate up to 15M bits/s
Resolution 720*576,720*480
Video format PAL/NTSC/SECAM

MPEG Audio MPEG 1 layer 1&2
Type Mono
Sampling rates 32,44.1 and 48KHz
Serial data interface Connector USB type
Power supply Li-oN Battery 1950 mA
Supply voltage 12.6Volt
charger 90-240V
Panel connectors Digital tuner input F type, male
Physical Specification Size 9.5x15.5x4.5 (cm)
Weight(Net) 0.5 Kg
