SatLink WS6979 DVB-S2 & T2 HD Combo Satellite & Aerial Meter

SatLink WS6979 DVB-S2 & T2 HD Combo Satellite & Aerial Meter

SatLink WS6979 DVB-S & T2 HD Combo Satellite & Aerial Meter With Spectrum Analyser And Constellation



* SatLink Satellite And Aerial HD Combo Meter With Spectrum
* DVB-S2 DVB-T2 HD Mpeg4 combo terrestrial signal meter finder satellite meter finder meter
* DVB-S2/S and DVB-T2/S spectrum constellation
* Meter for Signal MER
* Multimedia Player....
* 4.3 Inch Screen

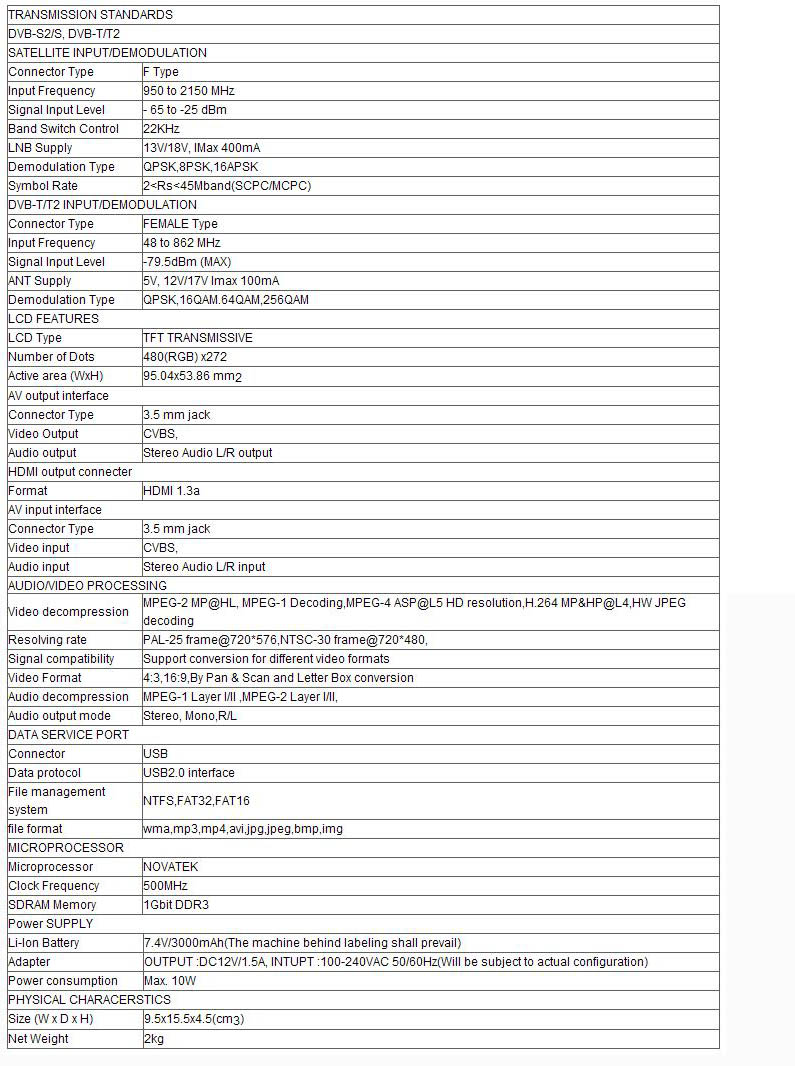

Product Specifications


Standards: DVB-S2/S, DVB-T/T2
Connector Type F Type
Input Frequency 950 to 2150 MHz
Signal Input Level - 65 to -25 dBm
Band Switch Control 22KHz
LNB Supply 13V/18V, IMax 400mA
Demodulation Type QPSK,8PSK,16APSK
Symbol Rate 2
Connector Type FEMALE Type
Input Frequency 48 to 862 MHz
Signal Input Level -79.5dBm (MAX)
ANT Supply 5V, 12V/17V Imax 100mA
Demodulation Type
QPSK,16QAM.64QAM,256QAM
LCD Type TFT TRANSMISSIVE
Number of Dots 480(RGB) x272
Active area (WxH) 95.04x53.86 mm2
Connector Type 3.5 mm jack
Video Output CVBS,
Audio output Stereo Audio L/R output
HDMI output connecter
Format HDMI 1.3a
Connector Type 3.5 mm jack
Video input CVBS,
Audio input Stereo Audio L/R input
Video decompression MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD
resolution,H.264 MP&HP@L4,HW JPEG decoding
Resolving rate PAL-25 frame@720*576,NTSC-30 frame@720*480,
Signal compatibility Support conversion for different video formats
Video Format 4:3,16:9,By Pan & Scan and Letter Box conversion
Audio decompression MPEG-1 Layer I/II ,MPEG-2 Layer I/II,
Audio output mode Stereo, Mono,R/L
Connector USB
Data protocol USB2.0 interface
File management system NTFS,FAT32,FAT16
file format wma,mp3,mp4,avi,jpg,jpeg,bmp,img
Microprocessor NOVATEK
Clock Frequency 500MHz
SDRAM Memory 1Gbit DDR3
Li-Ion Battery 7.4V/3000mAh(The machine behind labeling shall prevail)
Adapter OUTPUT :DC12V/1.5A, INTUPT :100-240VAC 50/60Hz(Will be subject to actual configuration)
Power consumption Max. 10W
Size (W x D x H) 9.5x15.5x4.5(cm3)
