KPT-955H 4.3 Inch Portable Satellite Finder Meter HD DVB-S/S2

KPT-955H 4.3 Inch Portable Satellite Finder Meter HD DVB-S/S2

KPT-955H 4.3 Inch Portable Satellite Finder Meter HD DVB-S/S2

Built-in satellite signal warning,
Find star signal quality LED displayed,
Easy Satellite Manager (EDIT, delete and SCAN),
Edit TP, Frequency, LNB switch, Symbol Rate Etc.
DC12V Output.

4.3inch handheld multifunctional monitor satellite finder is a product for the installation of satellite TV test tools. Set the satellite TV signal and image shows test, radio, television, monitoring function. With auto scan/blind scan/TP scan .Using TFT LCD display image, LED backlighting with low power consumption. Built-in large capacity and high-performance lithium batteries for the integration of high-tech electronic products.

Low power consumption LED / high-resolution digital display TFT LCD .built-in 2600mAh Li-lon battery, do not need an external power supply, find sat working time is about 3-4 hours, with high brightness flashlight, convenient for operation at night. AV output and input function. With DC12V output (use of camera).optional remote control. Satellite images and signal quality can be displayed through the LCD. Unique star search guidance function and satellite finder management, Built-in protecting circuits for LNB TV tuner. Finder sat change alarm prompt signal quality, support DVB-S/S2&MPEG-4 image & signal for free program and warming..13V18V/22K/signal lock indicator located satellites?Due to the use of handheld structure, this machine is small in size and light in weight. Equipped with installation tool backpack, it is more convenient to carry; it is professional equipment for satellite TV receiving and engineers, control engineering and technicians.

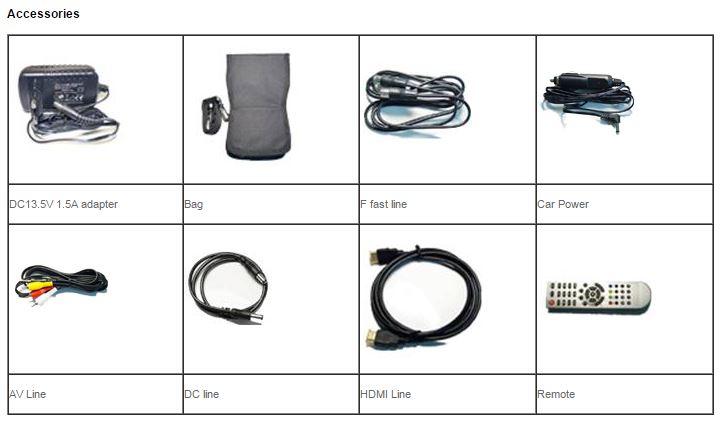

Accessories

DC13.5V 1.5A adapter
Bag
F fast line
Car Power
AV Line
DC line
HDMI Line
Remote

Specification

LCD Display 4.3”TFT LCD
Display size:97*55mm(16:9 display)
Dots pixels:480*272(391680Pixes)

Satellite signal
video decoding DVB-S/S2,MPEG-4 display
signal test DVB-S/S2,MPEG-4,signal alarm & signal test.

Menu language
English;Cesky/Dansk/Fancais/Deutsch/Italiano/Persian/Arabe/Israel

LNB/Tuner Input
connector F type male puly: 75? (F)
Frequency range 950MHz-2150MHz(DVB-S/S2)
Signal level -80~-20dBm
Symbol rate 13/18V.max400mA(DVB-S/S2)
LNB switch control 22KHz(turn on/off/auto)
DiSEqC 1.0, 1.1, 1.2, USALS
Sateliite Management Edit,Add,Delete
Minimum electric level About 35dBuV (noise)
Maximum electric level About 90dBuV

Demodulator
Front end QPSK(SCPC and MCPC compatible)
Symbol rate 2Mbps-45Mbps
Standard ETSI EN300 744
Guard interval moces 1/32,1/16,1/8 Active symbol duration
Carriers/Constellation All modes supported including non hierarchical
Demodulation QPSK/8PSK/16PSK

System Resource
SDRAM 1G DDR2 SDRAM
FLASH 32MB NOR FLASH

Video Decoder
HDMI Ouput 576i, 576P, 720P,1080i,1080P HD signal output.
Video format PAL/NTSC/SECAM
Standard ISO/IEC 13818-2 and ISO/IEC 14496-10
Transport stream ISO/IEC 13818-1
Video decoding MPEG-2 SD/HD(MP@ML and MP@HL), MPEG-4 H 2.64/AVC SD/HD DivX 3.X~6X
Aspect ratio 4:3,16:9

Audio
Standard ISO/IEC13818-3 TR1011154
Audio decoding MPEG-1 and MPEG-2 layer I&II,Dolby Digital Audio,E-AC3,WMA and HE-AAC Digital Audio
Sample rate 32kHz,22.1kHz,44.1KHz,48kHz

Subtitles&Teletext
Subtitle DVB Subtitle
Teletext EBU TELETEXT

Panel Connectors
Connector USB

Power Supply
Lithium Battery 11.1V/2600mAh
Charger In AC100-220V Charge 13.5V/1.5A / Out DC12V/1.5A

Physical Specification
Size 212*123*48mm
Net Weight 540g (including battery pack)
